Engineered Gaskets for Reliable Sealing

At METRADE, our Metal Core with G10/G11 flange insulation kits are engineered to meet stringent industry standards, delivering enhanced durability, dependable sealing, and long-term protection for demanding industrial applications. A Metal Core with G10 / G11 gasket used in a flange insulation kit is a high-performance solution designed for applications requiring both mechanical strength and reliable electrical isolation. This gasket features a metallic core (typically stainless steel) bonded with G10 or G11 glass-reinforced epoxy laminates, combining structural rigidity with excellent dielectric properties.

The metal core enhances load-bearing capacity and prevents gasket deformation under high pressure, while the G10/G11 layers provide superior insulation, low water absorption, and strong resistance to chemicals and temperature variations. As part of a complete flange insulation kit, this gasket is used in conjunction with insulating sleeves, washers, and metal backing washers to effectively prevent galvanic corrosion and block stray electrical currents in pipelines. It is particularly suitable for high-pressure, offshore, and critical service environments where standard insulation gaskets may not perform adequately.

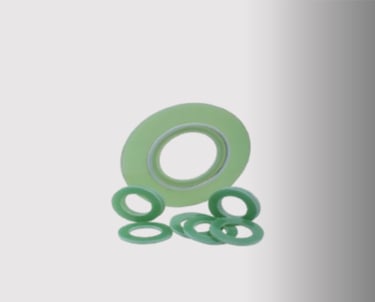

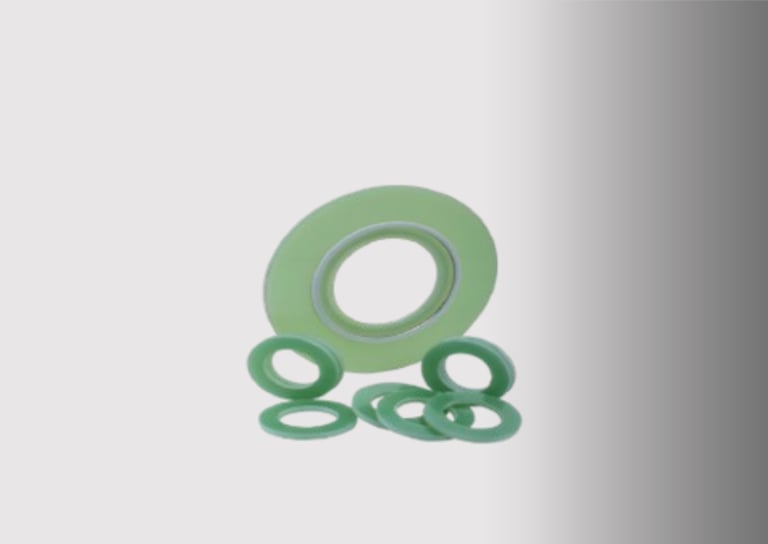

Metal Core with G10/G11 Gasket

Insulation Gasket Kit Types

TYPE E (FULL FACE TYPE GASKET)

TYPE F (RAISED FACE TYPE GASKET)

TYPE D (RTJ TYPE GASKETS)

METAL CORE WITH G10 / G11 GASKET

G10/G11 WITH VITON/SPRING ENERGEISED GASKETS
