Engineered Gaskets for Reliable Sealing

At METRADE, we offer G10/G11 with Viton or spring-energized flange insulation kits engineered to meet stringent industry standards, ensuring superior performance, extended service life, and dependable protection in demanding operating conditions. A G10/G11 with Viton / Spring Energized gasket used in a flange insulation kit is a premium sealing solution designed for applications requiring high-performance sealing along with reliable electrical isolation.

This gasket combines G10 or G11 glass-reinforced epoxy laminates for excellent dielectric strength and mechanical stability, with a Viton (FKM) sealing element or spring-energized seal to ensure tight, leak-proof performance even under fluctuating pressure and temperature conditions. The spring-energized design maintains consistent sealing force, compensating for thermal expansion, flange movement, and pressure cycling, making it highly effective in critical service environments.

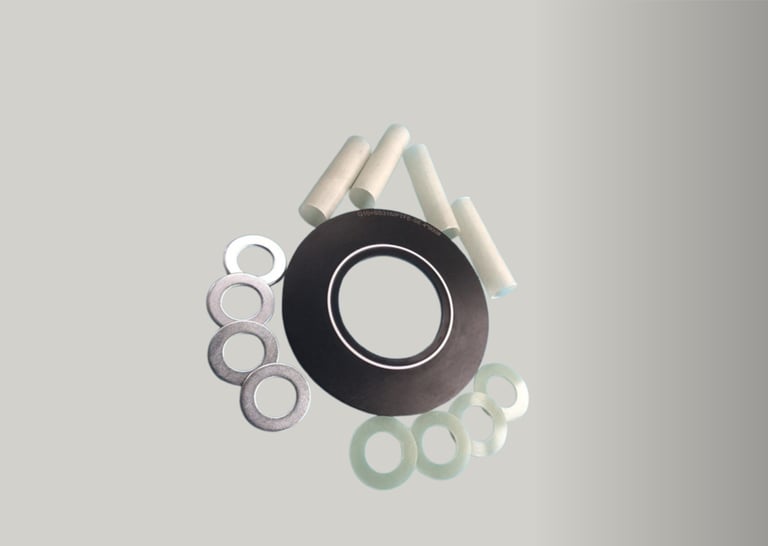

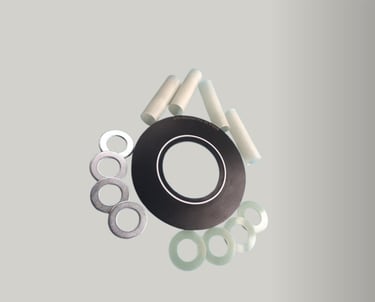

G10/G11 with Viton/Spring Energeised Gasket

Insulation Gasket Kit Types

TYPE E (FULL FACE TYPE GASKET)

TYPE F (RAISED FACE TYPE GASKET)

TYPE D (RTJ TYPE GASKETS)

METAL CORE WITH G10 / G11 GASKET

G10/G11 WITH VITON/SPRING ENERGEISED GASKETS
